Visualiser of boolean logic circuits - The default circuit is an XOR gate

Controls
  • Left click and drag gates to move them around.
  • Right click on gates to delete, or create connections.
  • Right click on the input gates to switch them on or off.
  • Right click on connections to delete them.
  • Right click elsewhere to spawn new gates
  • Scroll the mouse wheel to zoom out.
  • Click and drag the mouse wheel to pan the camera.
Example circuits

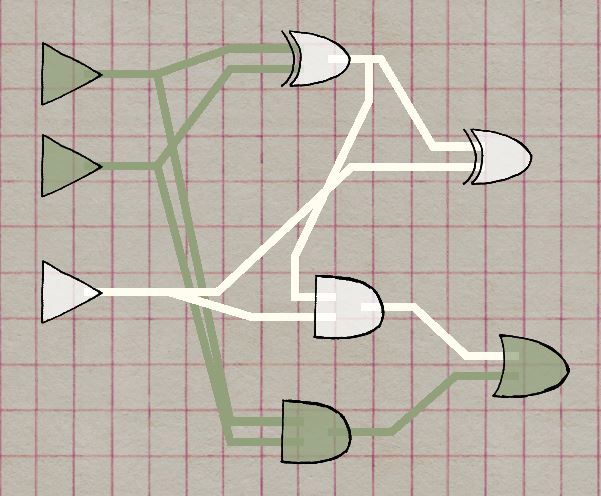

Full Adder

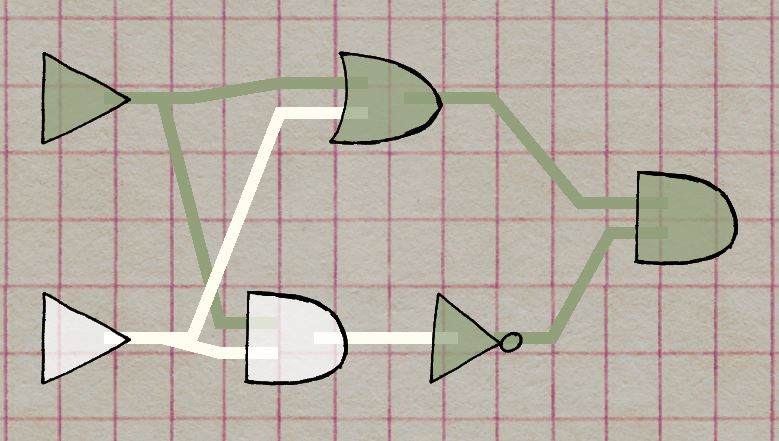

XOR Gate

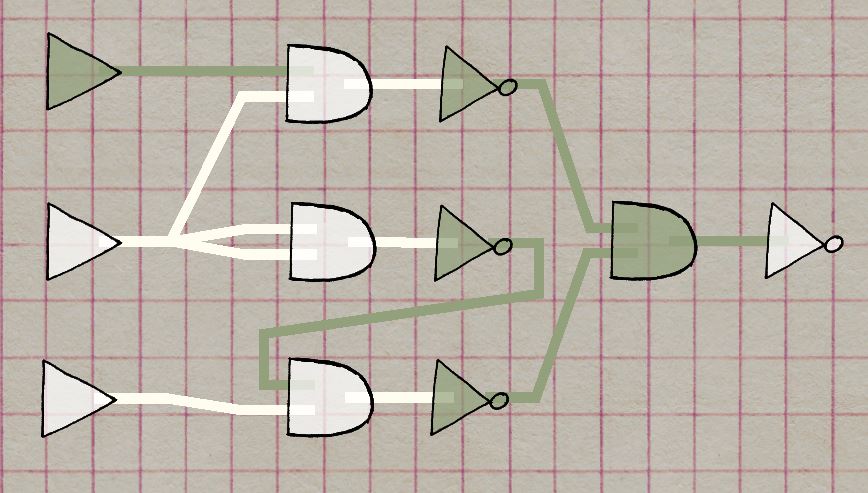

2-Input Multiplexer
